China Micro Coaxial Cable Inner Conductor Copper Clad Aluminum Magnesium Wire Used for High-Frequency Signal Transmission manufacturers and suppliers

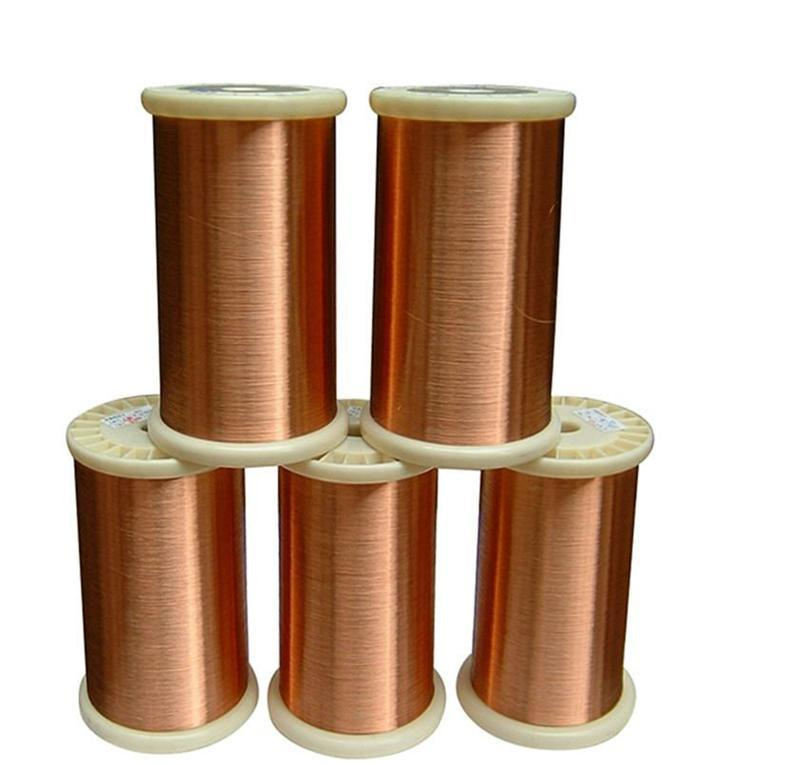

Micro Coaxial Cable Inner Conductor Copper Clad Aluminum Magnesium Wire Used for High-Frequency Signal Transmission Featured Image

Short Description:

Our CCAM wire used the most advanced welding and copper plating process to produce , copper layer used 99.9% purity copper with high density and better conductivity , and ours metallurgical bonding technique assures that the copper cladding is evenly distributed around the Aluminum magnesium coil along the wire for excellent concentricity.

Our company developed the second generation of CCAM wire is made of high strength of aluminum magnesium core , copper layer is made of pure copper , light weight but boasts higher intensity of 250-300Mpa, and the density is only 2.85g/cm3, the second generation CCAM is 30% longer than its first generation CCAM competitor of the same weight . Buyer can take 30% cost reduction of using ours second generation CCAM , at the same time overcome the low-intensity antecedent that breaks easily .

Send email to us

Product Detail

Product Tags

Product Detail

To achieve better tensile strength, using aluminum magnesium alloy rod as the core wire, then cladding copper layer on the surface, after drawing several times, then copper clad aluminum magnesium wire is made.

Advantages: Same as CCA Wire, it has low density, easy to solder and high strength.

Disadvantages: As the conductor contains magnesium, the resistivity compared with pure CCA wire is higher. It is not conductive to make conductor for transporting current.

Product Parameter

Product name	CCAM WIRE
Diameters available [mm] Min - Max	0.05mm-2.00mm
Density [g/cm³] Nom	2.95-4.00
*Conductivity [S/m 106]**	31-36
IACS [%] Nom	58-65
Temperature-Coefficient [10-6/K] Min - Max of electrical resistance	3700 - 4200
Elongation (1)[%] Nom	17
Tensile strength (1)[N/mm²] Nom	170
Outer metal by volume[%] Nom	3-22%
Outer metal by weight[%] Nom	10-52
Weldability/Solderability[--]	++/++
Properties	CCAM combines the advantages of Aluminum and Copper. Lower density allows weight reduction, elevated conductivity and tensile strength compared to CCA, good weldability and solderability, recommended for very fine sizes down to 0.05mm
Application	CATV coaxial cable, large capacity communication network signal electric LAN, control signal cable, cable shielding line, metal hose etc. Aspects.

IEC 60317(GB/T6109)

The Tech & Specification parameters of our company’s wires are in international unit system, with the unit of millimeter (mm). If use American Wire Gauge (AWG) and British Standard Wire Gauge (SWG) , the following table is a comparison table for your reference.

The most special dimension can be customized as per the requirements of customers.

Comparison of Different Metal Conductors’s Tech& Specification

METAL	Copper	Aluminium Al 99.5	CCA10% Copper Clad Aluminum	CCA15% Copper Clad Aluminum	CCA20% Copper Clad Aluminum	CCAM Copper Clad Aluminum Magnesium	TINNED WIRE
Diameters available [mm] Min - Max	0.04mm -2.50mm	0.10mm -5.50mm	0.10mm -5.50mm	0.10mm -5.50mm	0.10mm -5.50mm	0.05mm-2.00mm	0.04mm -2.50mm
Density [g/cm³] Nom	8.93	2.70	3.30	3.63	3.96	2.95-4.00	8.93
Conductivity[S/m * 106]	58.5	35.85	36.46	37.37	39.64	31-36	58.5
IACS[%] Nom	100	62	62	65	69	58-65	100
Temperature-Coefficient[10-6/K] Min - Max of electrical resistance	3800 - 4100	3800 - 4200	3700 - 4200	3700 - 4100	3700 - 4100	3700 - 4200	3800 - 4100
Elongation (1)[%] Nom	25	16	14	16	18	17	20
Tensile strength (1)[N/mm²] Nom	260	120	140	150	160	170	270
Outer metal by volume[%] Nom	-	-	8-12	13-17	18-22	3-22%	-
Outer metal by weight[%] Nom	-	-	28-32	36-40	47-52	10-52	-
Weldability/Solderability[--]	++/++	+/--	++/++	++/++	++/++	++/++	+++/+++
Properties	Very high conductivity, good tensile strength, high elongation, excellent windability, good weldability and solderability	Very low density allows high weight reduction, fast heat dissipation, low conductivity	CCA combines the advantages of Aluminum and Copper. Low density allows weight reduction, elevated conductivity and tensile strength compared to Aluminum, good weldability and solderability, recommended for diameter 0.10mm and above	CCA combines the advantages of Aluminum and Copper. Lower density allows weight reduction, elevated conductivity and tensile strength compared to Aluminum, good weldability and solderability, recommended for very fine sizes down to 0.10mm	CCA combines the advantages of Aluminum and Copper. Lower density allows weight reduction, elevated conductivity and tensile strength compared to Aluminum, good weldability and solderability, recommended for very fine sizes down to 0.10mm	CCAM combines the advantages of Aluminum and Copper. Lower density allows weight reduction, elevated conductivity and tensile strength compared to CCA, good weldability and solderability, recommended for very fine sizes down to 0.05mm	Very high conductivity, good tensile strength, high elongation, excellent windability, good weldability and solderability
Application	General coil winding for electrical application, HF litz wire. For use in industrial, automotive, appliance, consumer electronics	Different electrical application with low weight requirement, HF litz wire. For use in industrial, automotive, appliance, consumer electronics	Loudspeaker, headphone and earphone, HDD, induction heating with the need of good termination	Loudspeaker, headphone and earphone, HDD, induction heating with the need of good termination, HF litz wire	Loudspeaker, headphone and earphone, HDD, induction heating with the need of good termination, HF litz wire	Electrical wire and cable, HF litz wire	Electrical wire and cable, HF litz wire
