Short Description:

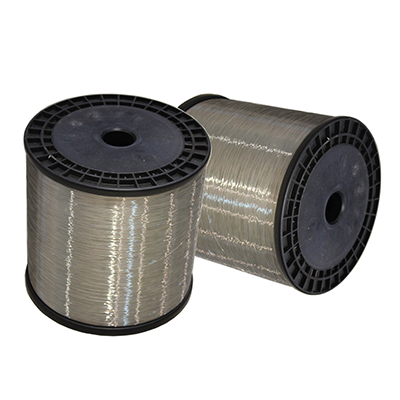

The tinned wire is a product made of a bare copper wire,copper clad aluminum wire or aluminum wire as a base and uniformly coated with a tin or tin-based alloy on its surface. It meets environmental protection requirements, and has many advantages such as good oxidation resistance, heat resistance, good compactness, strong corrosion resistance, strong weldability, bright white color and so on.

Products are used for power cables, coaxial cables, conductors for RF cables, lead wires for circuit components, ceramic capacitors, and circuit boards line.


Product Detail

Product Tags

Tinned Wire Characteristics

The tinned wire is a product made of a bare copper wire,copper clad aluminum wire or aluminum wire as a base and uniformly coated with a tin or tin-based alloy on its surface. It meets environmental protection requirements, and has many advantages such as good oxidation resistance, heat resistance, good compactness, strong corrosion resistance, strong weldability, bright white color and so on.

Products are used for power cables, coaxial cables, conductors for RF cables, lead wires for circuit components, ceramic capacitors, and circuit boards.line.

Product Parameters

Tinned round copper wire nominal diameter and deviation

11

Nominal diameter
Nominal Diameter (d/mm)

Lower limit of limit

Limit deviation limit

Elongation (minimum
Elongation ( min ) %

Resistivity p2() (maximum)
Resistivity p20(max) /(Ω • mm2/m)

0.040≤d≤0.050

-0.0015

+0.0035

7

0.01851

0.050<d≤0.09

+0.0010

+0.0050

12

0.01802

0.090<d≤0.250

+0.0010

+0.0050

15

0.01770
